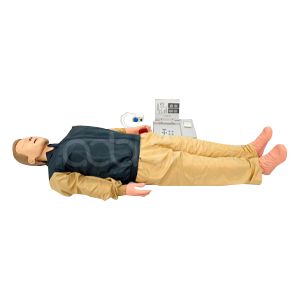

Advanced Automated Computerized CPR and Hand Wound Hemostasis Manikin

Implementation Standard: American Heart Association (AHA) 2020 International Guidelines for Cardiopulmonary

Resuscitation (CPR) & Emergency Cardiovascular Care (ECC)

Patent Design: Adopts two CPR design principles: ZL 2011 2 0227179.6 and ZL 2011 3 0243078.3, for both form and

function.

Features:

The mannequin features distinct anatomical features, a realistic feel, uniform skin color, lifelike shape,

and an aesthetically pleasing appearance.

Simulated vital signs:

Initially, the mannequin's pupils are dilated, and there is no carotid pulse.

During compressions, the mannequin's carotid artery passively pulsates, with a pulsation frequency consistent

with the compression frequency.

After successful resuscitation, the mannequin's pupils return to normal, and the carotid artery pulsates

spontaneously.

Pupil dilation/contraction and carotid artery pulsation can be turned on and off by a switch.

Artificial respiration and chest compressions can be performed.

Standard airway opening can be performed; the airway indicator light illuminates.

The latest (AHA) 2020 International CPR standard applies; an 8-second pause without intervention constitutes

a failure of resuscitation efforts.

Three operating methods: CPR training, pattern assessment, and practical assessment are available.

Method 1: CPR training, including compression and ventilation training.

Method 2：Model Assessment. Within a set time, perform 5 cycles of correct compressions to breaths at a ratio

of 30:2, according to the 2015 International CPR Standards.

Method 3: Practical Assessment. Instructors can set the operation time range, operation standards, number

of cycles, operation frequency, and compression-to-breath ratio.

Controller display screen function:

Electronic Monitoring:Electronic indicator lights show airway opening and compression site. It also counts the

correct and incorrect number of artificial respirations and chest compressions.

Voice Prompts:Provides full Chinese voice prompts during training and assessment. Voice prompts can be turned

on and off, and the volume can be adjusted.

Text Prompts: Provides full Chinese text prompts during training and assessment.

Barcode Display of Air Volume:Correct air volume is 500-600ml-1000ml:

Insufficient air volume: Barcode is yellow.

Appropriate air volume: Barcode is green.

Excessive air volume: Barcode is red.

Tidal volume too fast or too large, causing air to enter the stomach: Indicator light; digital counter display;

error voice prompt.

Barcode Display of Compression Depth:Correct compression depth is 5-6cm:

Insufficient compression depth: Barcode is yellow.

 When the compression depth is appropriate, the barcode is green.

 When the compression depth is excessive, the barcode is red.

 The operation time can be set in seconds.

 Operation frequency: 100-120 times/minute according to the 2015 international standard.

 Power supply: Uses 220V power, with a regulated output of 12V. It can also be powered by four AA batteries,

suitable for first aid training in situations without power, such as in the field.

Printer function：

Print the operation process after completion.

The report card includes the following information: operation method, assessment of consciousness,

 emergency breathing, pulse check, breathing check, removal of foreign objects, operation frequency,

compression-to-ventilation ratio, number of cycles, number of compressions and ventilations in each cycle,

number of correct/incorrect compressions, reasons and number of incorrect compressions, reasons and number of

correct/incorrect ventilations, reasons for incorrect ventilations, set time, operation time, and assessment.

Trauma Hemostasis Function:

Wearable hand trauma module, simulating an open wound on the back of the left hand.

Can be used with a simulated bleeding pump to simulate arterial bleeding.

Material Characteristics:

Facial skin, neck skin, chest skin, and hair are made of imported thermoplastic elastomer mixed material,

 injection molded at high temperature using stainless steel molds. It features accurate anatomical landmarks,

 realistic feel, uniform skin color, lifelike shape, beautiful appearance, durability,

 resistance to deformation after disinfection and cleaning, and easy disassembly and replacement.

The material meets international standards.

Standard Configuration:

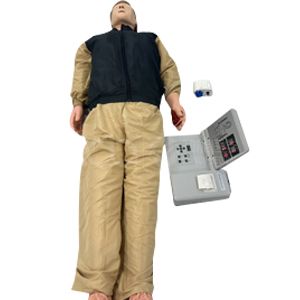

Advanced resuscitation full-body mannequin (1 unit)

Advanced display controller (1 unit)

Wearable hand trauma module (1 piece)

Simulated bleeding pump, reservoir, and power supply (1 set)

Deluxe pull-pull hard plastic mannequin case (1 unit)

Resuscitation operation mat (1 piece)

Power adapter (1 piece)

Data cable (1 piece)

Barrier masks (50 masks/box) (1 box)

Replaceable lung bags (4 sets)

Replaceable face skin (1 piece)

Thermal printing paper (2 rolls)

Instruction manual (1 copy)
